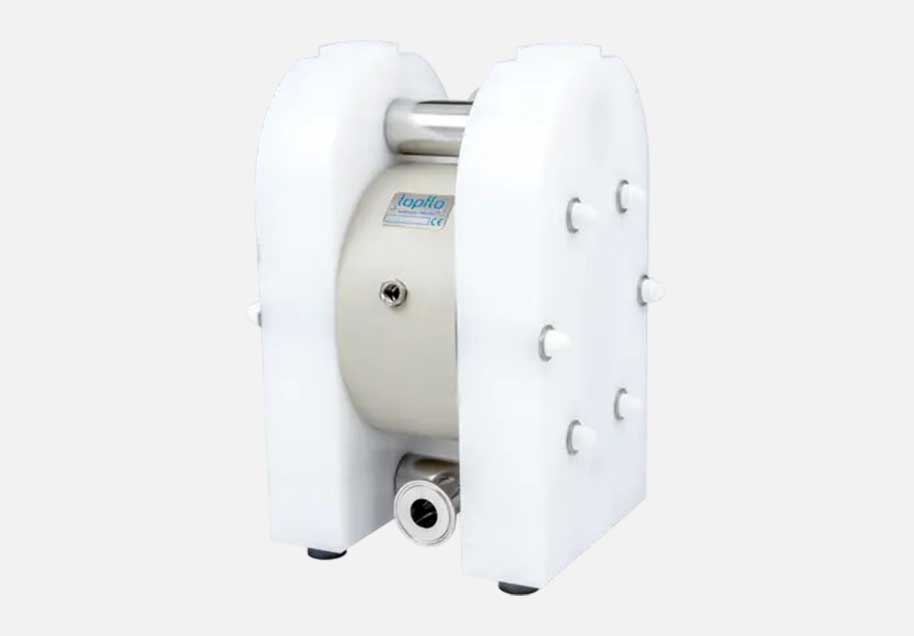

Pharmaceutical Pumps

This pump series was developed in co-operation with one of the world leading supplier to the biotech market. It serves the biotech- and pharmaceutical industries in numerous applications.

Our unique USP approved (United States Pharmacopoeia) hygienic PTFE or PP pump, features all wetted parts in USP class VI certified materials.

Simplicity

Pump housing with only three parts makes it extremely easy to maintain.

Superior finish

High finish and hygienic approved materials.

Features & Benefits

Sanitary design smooth internal surfaces
Inert materials no contamination of the pumped product
USP class VI approved materials
Extremely easy to maintain pump housing with very few components

Technical Data

Model	Max capacity (l/min)	Connections BSP inv.
T53	60	3/4"
T103	125	1"
T203	330	1 1/2"
T403	570	2"
