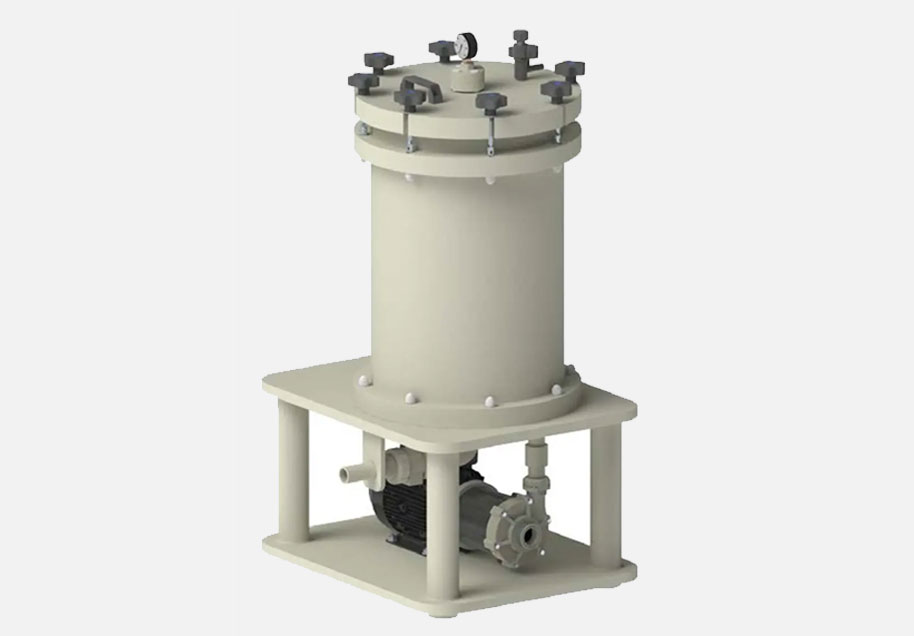

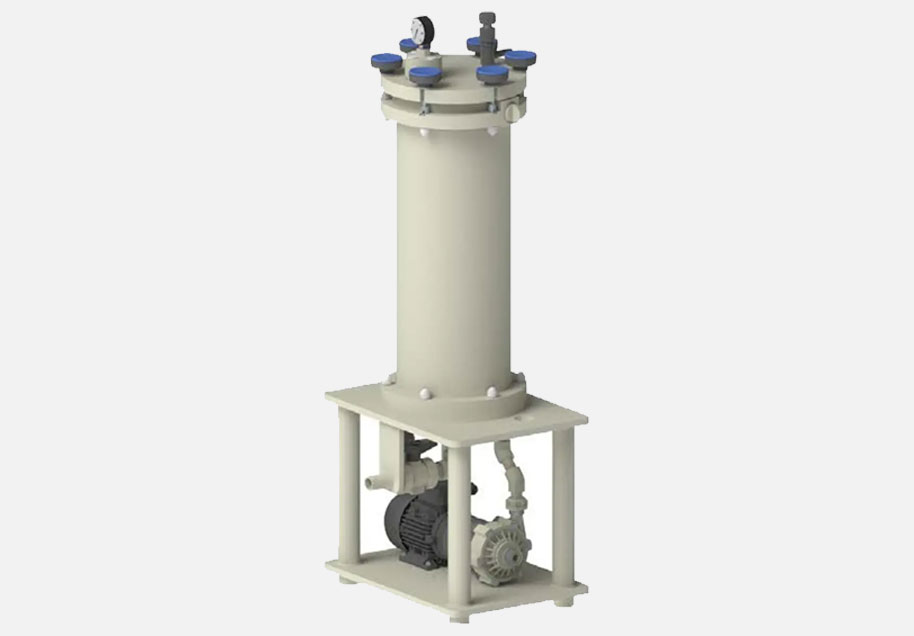

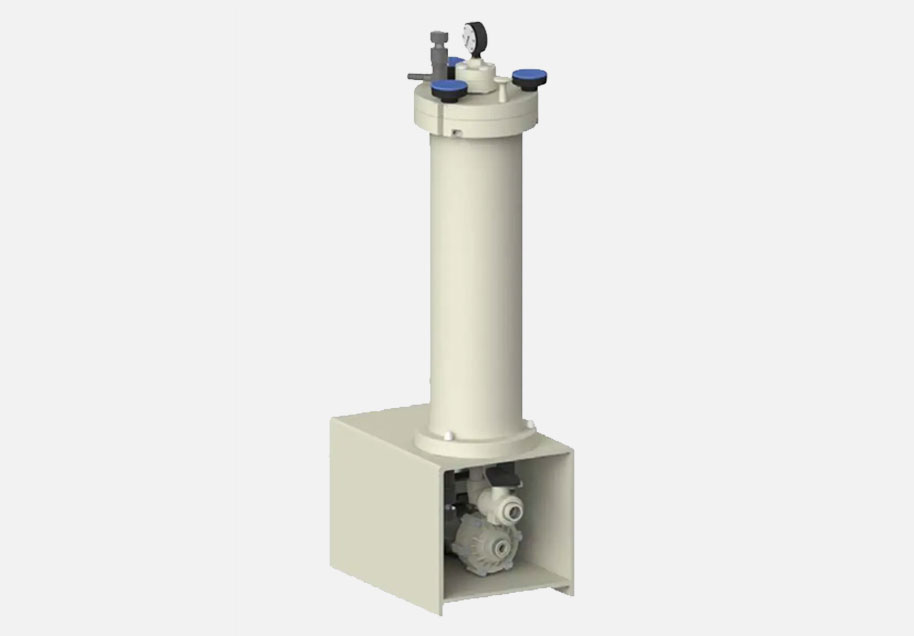

Filter Units

Name: Vaves Innovative Solutions
Address: Office No. F-11, Jai Ganesh Vision, Phase-II, Near Khandoba Mandir Chowk, Akurdi,, Pune, 411035, IN
Telephone: +91 9270199208

CREATING A SAFE PROCESS

FT Filters are developed to work in various applications, where process quality often relies on the bath filtration. As there are many hazardous substances used, it is of paramount importance to ensure these chemicals are handled in a safe way.

Tapflo is here to provide you reliable solutions that increase both quality and safety of your filtration processes.

Typical APPLICATIONS

Surface treatment
Precious metal plating
Chemical industry

Paints and varnishes
Water treatment

FEATURES & BENEFITS

Simple and smart design
New FT Filters were designed to reduce the number of parts to minimum. Filters are easy to maintain and service and the inserts are easy to replace.
Changeable inserts
Thanks to the universal body design, the FT Filter units can be equipped with various filtering inserts. It allows the filters to work with surface treatment baths, oil absorbing systems and precious metals treatment systems.
Wide range of filtering volume
Filtering volumes which exact the needs of various applications. Suitable for tanks capacity form 200 l (for FT80) to 6000 l (for FT355).
Solid construction
FT Filters are made to work in a tough industrial environment; its robust design provides a safe and reliable daily work environment, both with acids and alkali. Our FT Filters are ready to resist hard conditions all over the world.

TECHNICAL DATA

Pump size	FT80	FT160	FT210 FTB210	FT355
Applicable tank size (L)	400	1200	2800	6000
Filter capacity (m³/h)	3,5	5,2	14	18,1
Max head (m)	5,0	7,2	11,2	20,1
Motor power (kW)	0,12	0,25	0,55	3,0
Filter housing	PP
O-rings	EPDM, NBR, FKM
Temperature range	0°C - 70°C
