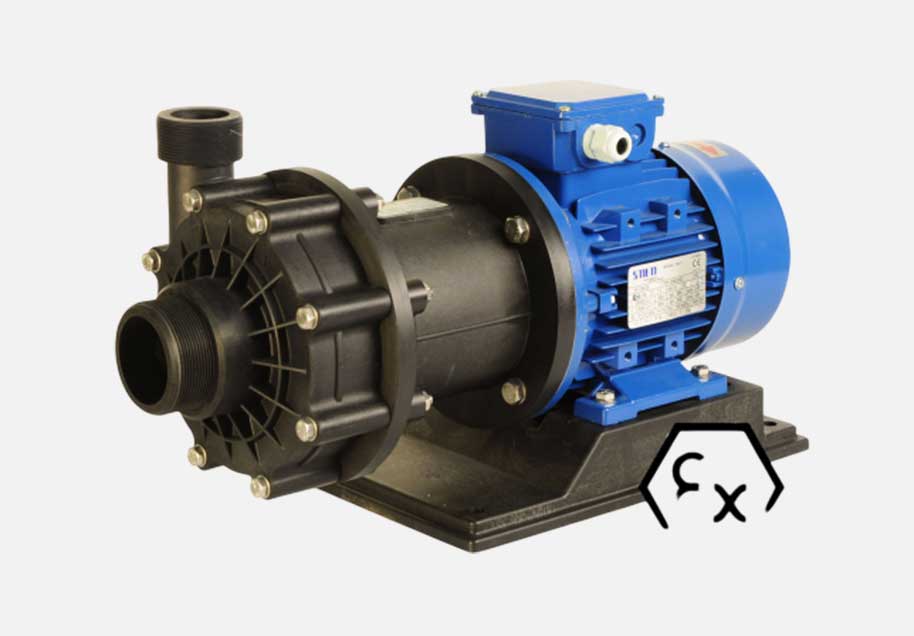

EM-CO – ATEX Mechanical Seal Centrifugal Pumps

Magnetic drive centrifugal pumps made in thermoplastic materials suitable to be used in a potentially explosive atmosphere classified ZONE 2 II3G

Anti-corrosion industrial pumps suitable for pumping acids and bases fluids and highly corrosive liquids

Materials available: PP / PVDF.
Flow up to 130 m3/h; Head up to 48 mlc.
Temperature: PP: max 70° C – PVDF: max 90°C.
Max viscosity: 200 cSt.
Pressure rating: NP 6 at 20°C.
Lip seal for pumps size 95-10; internal PTFE bellows mechanical seal for all the other sizes.
Suitable for high corrosive liquids containing solids in suspension (non-abrasive solids max. 5% – dimension max. 3 mm).

Centrifugal pumps series EM-CO with mechanical seal are made of thermoplastic materials (Polypropylene and PVDF) and are suitable for high corrosive liquids containing solids in suspension. The seal of pumps EM-CO size 95-10 is guaranteed by a special elastomeric lip seal, while all the other pump sizes (from size 110 to 170) are equipped with an internal PTFE bellows mechanical seal (sic/ceramic), which is manufactured by GemmeCotti.
